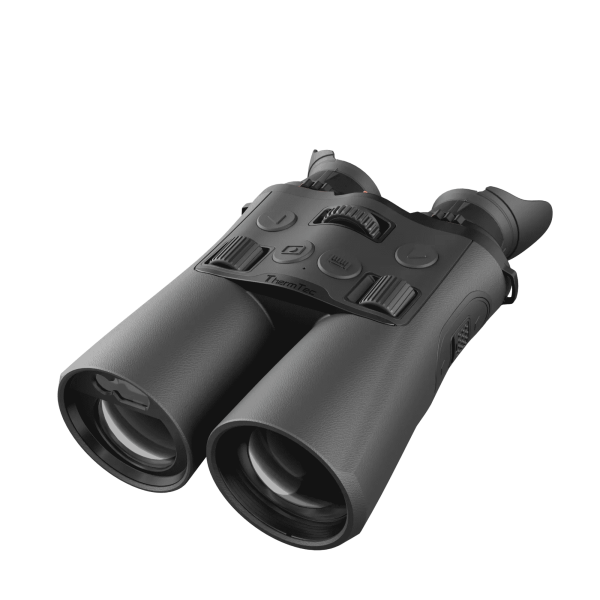

ThermTec Ventus 635L

Multi-spectrum binocular with thermal imaging, 4K optical channel and laser rangefinder
The powerful 5-in-1 system for day and night hunting – more compact, versatile and ideal for efficient scanning

Thermal sensor 640x512 pixels @12µm
Extremely high sensitivity NETD < 15 mK
35 mm F0.9 objective – detection range up to 1800 m
4K Ultra 12MP CMOS day & night vision channel
Selectable IR illuminator 850 nm / 940 nm
Integrated laser rangefinder up to 1000 m (±1 m)
Dual-focus operation & EIS image stabilization
Thermal Super Resolution (TSR) & ThermTec AI Calibration
Replaceable 18650 batteries with up to 6 hours of runtime

The ThermTec Ventus 635L combines a highly sensitive thermal sensor (NETD <15 mK) with a 12 megapixel CMOS sensor and integrated IR illumination (switchable between 850 nm and 940 nm). This delivers clear, consistent imaging in daylight, twilight and complete darkness – ideal for anyone who wants maximum overview in the field and a natural binocular viewing experience.

ThermTec AI Calibration enhances image stability and clarity for smooth viewing in changing environments. With a balanced base magnification and a detection range of up to 1800 meters, large areas can be scanned efficiently, game can be detected early and identified with confidence.

Natural viewing with both eyes

The Ventus 635L is not a classic monocular – it is a true multi-spectrum binocular. Viewing with both eyes provides a much more natural image, improved depth perception and reduced fatigue – a clear advantage during long sits or extended stalking.

In addition, the eyepiece distance can be adjusted: the interpupillary adjustment from 60 mm to 72 mm ensures comfortable viewing for different eye positions.

5-in-1 system – maximum versatility in one device

The Ventus 635L integrates the following features into one complete system:

Thermal imaging with NETD < 15 mK
4K Ultra CMOS for daylight & digital night vision
Dual-band IR (850/940 nm)
Laser rangefinder up to 1000 m
EIS image stabilization for steadier viewing

This creates a system that supports reliable detection, identification and distance awareness – even in complex terrain and demanding hunting scenarios.

Highly sensitive thermal imaging: 35 mm F0.9 – ideal for efficient scanning

In thermal mode, the Ventus 635L uses a 640x512 pixel sensor @12 µm with NETD < 15 mK. Combined with the fast 35 mm F0.9 lens, it delivers a high-contrast thermal image that shows its strengths especially in damp weather or low thermal contrast conditions.

The thermal field of view is 21.9 x 17.6 m at 100 m – ideal for fast scanning of larger areas. The detection range is up to 1800 m.

Thermal Super Resolution & digital zoom up to 10.4x

Thanks to Thermal Super Resolution (TSR), the Ventus 635L delivers a detailed, clean image even at higher magnification. Thermal magnification starts at 2.6x and can be expanded via 4x digital zoom up to 10.4x – ideal for bringing out details without the image “breaking down”.

4K Ultra Clarity: 12MP CMOS & 1600×1200 AMOLED display

The optical channel uses a 12MP 4K Ultra CMOS sensor and is displayed on a high-resolution 0.5″ AMOLED display with 1600×1200 pixels. The result is a very clear, pleasantly high-contrast image in daylight – and in combination with IR illumination, powerful digital night vision.

Optical magnification is 4x and can be digitally expanded (4x) up to 16x.

Selectable IR illumination: 850 nm or 940 nm

For digital night vision, two wavelengths are available: 850 nm for maximum range (up to approx. 400 m) and 940 nm for particularly discreet, wildlife-friendly observation (up to approx. 350 m). This allows the Ventus 635L to be perfectly adapted to the hunting ground, game species and situation.

Integrated laser rangefinder up to 1000 m

The integrated laser rangefinder (LRF) measures distances up to 1000 m with an accuracy of ±1 m. The LRF module is fully integrated into the housing – with no external add-on and no impact on balance.

Ergonomic operating concept & high comfort

The Ventus 635L is designed for practical hunting use: its ergonomic shape with hand and waist support enables stable, steady handling. Thanks to the dual-focus wheels, the device can be operated precisely – even one-handed and easily switching between hands.

The rubberized, non-slip surface ensures a secure grip and remains comfortable even in low temperatures.

Efficient power management & proximity sensor

Two replaceable 18650 batteries provide up to 6 hours of runtime. In addition, a proximity sensor automatically turns off the display when no human presence is detected – saving power and extending runtime during intermittent observation.

Rugged and field-ready

The Ventus 635L is protected to IP67 and built for tough hunting conditions. Rain, dust and temperatures between -20°C and +50°C are no issue.

Technical data - ThermTec Ventus 635L

Detector	640x512 pixels @12μm, VOx
Focal length	35mm
NETD	< 15 mK
Display	AMOLED 1600x1200 pixels (0.5 inch)
Aperture	F0.9
Focus	Manual
Field of view (FOV)	12.5° x 10.0°
Field of view at 100m	approx. 22m
Frame rate	50Hz
Detection range	1800m
Magnification	2.6x (digital up to 10.4x)
Digital zoom	4x
Color palettes	Black Hot White Hot Red Hot Green Hot Violet Hot Gold Hot
Image sensor (optical module)	3536 x 3536 pixels, CMOS
Focal length (optical module)	50mm
Magnification (optical module)	4x (digital up to 16x)
Aperture (optical module)	F1.4
Intelligent IR illuminator	Yes
IR wavelength	850nm / 940nm
Diopter adjustment	Yes
Hotspot tracking	Yes
Laser rangefinder (LRF)	Yes, up to 1000m
Photo capture	Yes
Video recording	Yes
Wi-Fi / App	Yes
Battery runtime	6 hours
Battery type	Replaceable 18650 battery
Internal storage	64 GB
Interfaces	USB-C
Protection rating	IP67
Weight	825g (without batteries)
Dimensions	164 x 127.6 x 73 mm

Package contents

Thermal imaging device ThermTec Ventus 635L
Battery charger for 18650 batteries
2x 18650 batteries
USB-C cable
Protective bag
Dust-free cleaning cloth

Item information	Value
Sensor resolution:	640 x 512 px
Category:	Thermal imaging binocular
Field of View (100m):	18-22m
Display type:	AMOLED
Replacable batterie:	Yes
Display resolution:	1600 x 1200 px
Long range finder:	Yes
Range:	1800 m
Focal length:	35 mm
Magnification:	2.6-5.7 x
Sensor sensitivity:	≤ 15 mK
